When I watch customers use the Desktop, I often see that there is one part of it that gives them the most trouble: moving desktop components to organize the layout. Layout out components is easy to do once you know the trick. As an example, I’ll show you how to move the Workspace browser to a tabbed position with the Command History.

Dragging

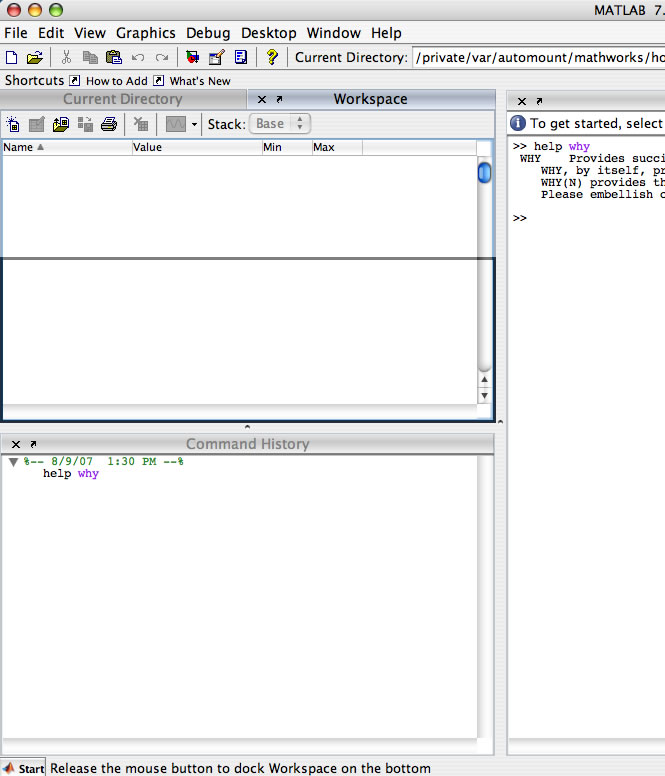

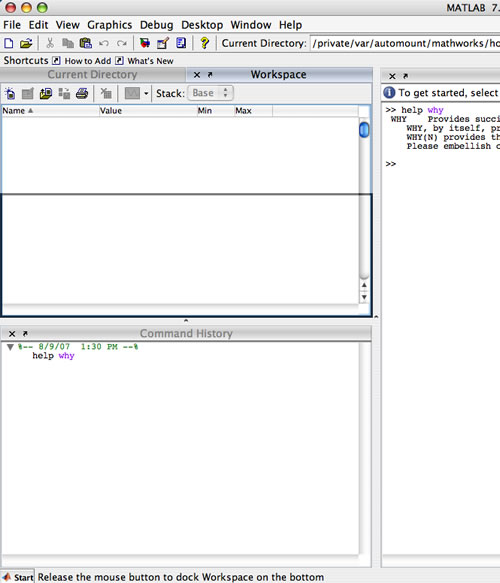

From the default layout, I first grab the Workspace titlebar and drag it around. The important thing to remember about getting it to lock into the right place, is to NOT LET GO of it until you see the black lines indicate the correct position. For example, as I drag the Workspace browser, I see black lines that don’t line up with the position I want:

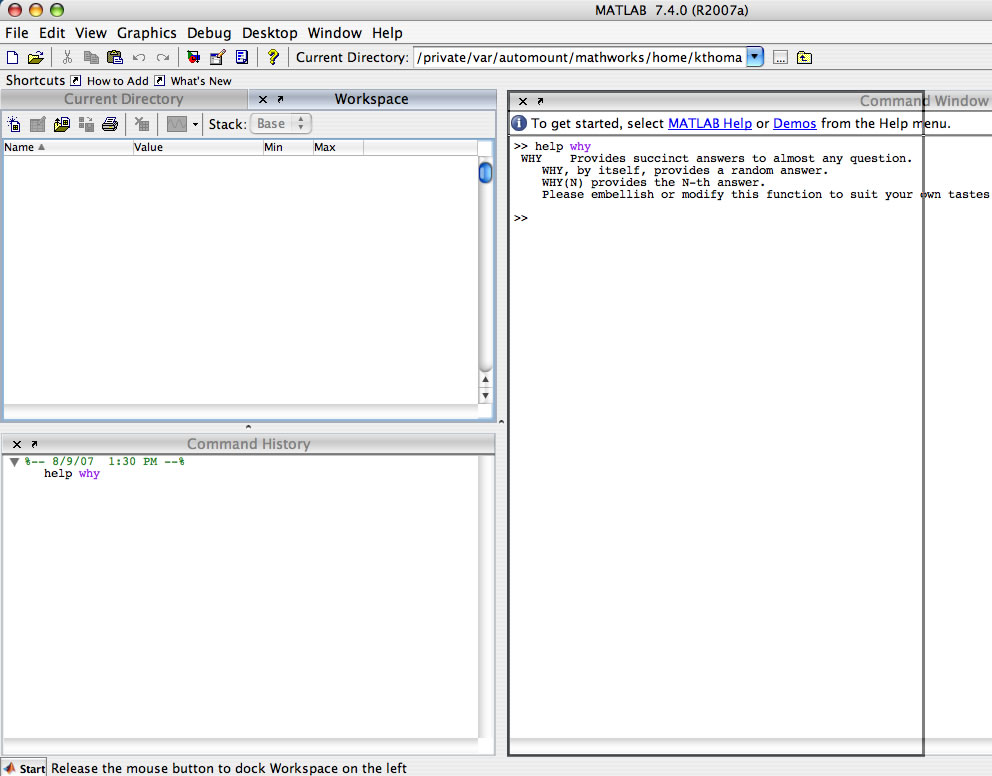

And, I don’t want this position either! I’ll keep dragging to find the right spot:

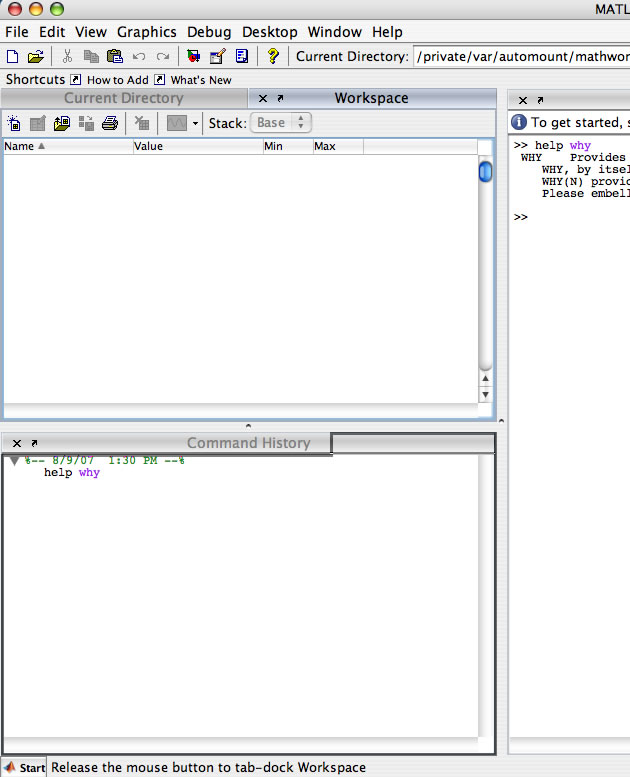

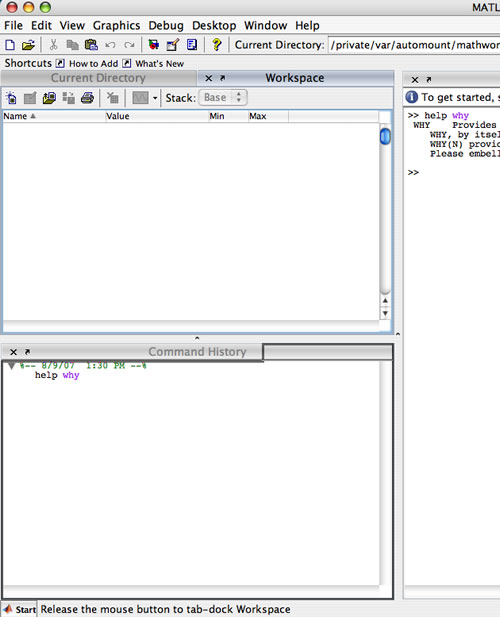

Now, I see the outline that matches the position I want, like this one:

There are so many different positions that the window can drop into and these little black lines are your guide to moving the windows into the spots that you want.

Dragging

After you have spent a bit of time getting the layout just the way you like it, save the layout so you can easily get it back later. Go to the “Desktop” menu, “Save Layout…” menuitem. Enter a name for the layout and hit ok:

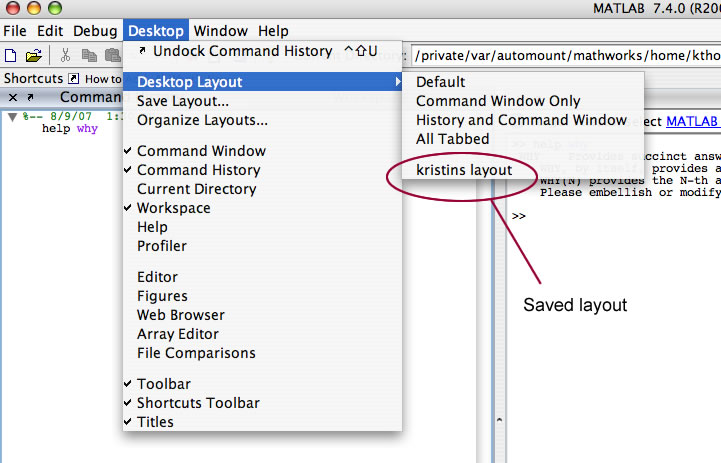

After the layout has been saved, you can re-set it by going to the “Desktop menu”, “Desktop Layout” menuitem and choosing your saved layout.
